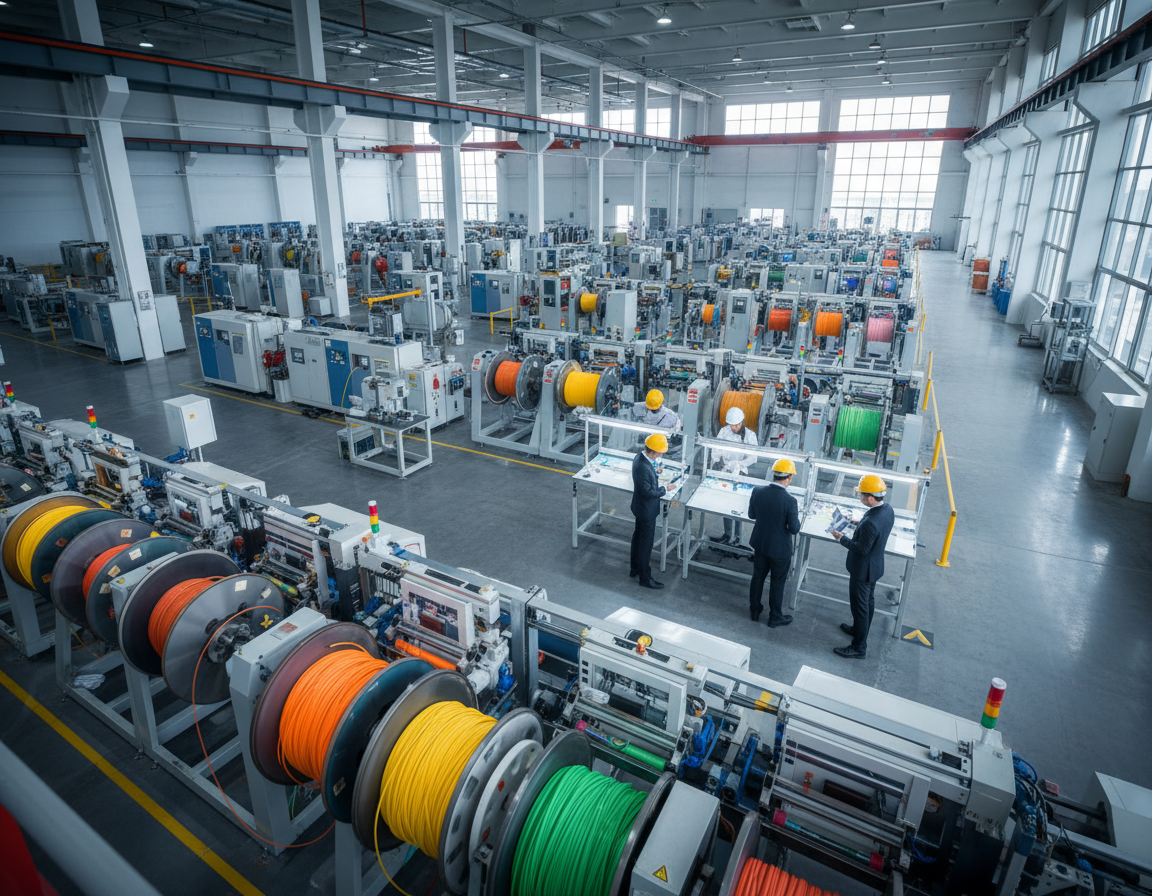

The FTTH Cable Production line is a coordinated suite of modules that transforms fiber optic glass into completed drop and distribution cable products with repeatable quality.
Compact Fiber Unit
This introduction guides operations leaders, process engineers, procurement teams, and students in the U.S. who evaluate how industrial production equipment shapes delicate fiber into durable cables for broadband service and communications networks.
At its core, the end-to-end objective is simple: safeguard the fiber, preserve low optical loss, build in installation strength, and produce a cable that survives inside and outside exposure.
Top-tier equipment delivers reliable tension regulation, synchronized motion control, consistent process operating windows, and clear, auditable documentation for acceptance testing. The article helps pair the right line configuration, materials, and test plan to the desired cable design instead of ordering equipment first and backfilling requirements afterward.
Readers will trace steps such as fiber handling and preparation, buffering/coating, stranding, strength-member integration, sheathing (outer jacket extrusion), optional armor, and end-of-line testing and packaging.
Key takeaways include: A well-specified line reduces defects and ensures predictable delivery. Lock in process alignment before equipment purchase to save time and cost.
How A Fiber Optic Cable Production Line Operates Today
Where last-mile drop and distribution demands meet factory practice.
Modern fiber manufacturing lines stitch delicate glass into finished products used in U.S. broadband deployments. Last-mile drop cable and ftth drop demand drives high volumes, so manufacturers emphasize repeatable handling methods and standards-based output.
Core Modules & Material Flow
Material progresses through a defined sequence: pay-off feed → guiding/tensioning → secondary coating/color application → organization and SZ stranding → strength-element feed → jacketing (sheathing) → cooling and curing → take-up and testing.
Modules → Outcomes
Stable fiber handling lowers attenuation and maintains data and communications integrity. Uniform jacketing supports installation and connector prep. Inline monitoring flags loss events before reels ship.
- Indoor vs. outdoor: different jacket compounds and buffering.
- Armored variants add steel tape or wire to improve rodent and crush resistance.
- Drop designs favor tight-buffered fibers plus simpler connector prep.
Buyers should view lines as modular. Factories add armoring or omit steps to match the product type. Throughput is limited by curing and dimensional control, not only motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Kick off with a clear product definition that spells out cable type, core count, service environment, and end-use scenarios. That early definition narrows the modules your line must include, from tight-buffer units to SZ stranding capability and jacket extrusion.
Select Standards, Measurable Targets
Pick fiber standards such as ITU-T G.652D single-mode or bend-insensitive ITU-T G.657A1/A2 based on required bend performance and route constraints. Document optical loss budgets, tensile strength, crush and bend limits, and environmental durability before choosing a supplier.
- Identify the precise product type and fiber/core count so you can define modules and control requirements.
- Define attenuation (loss) budgets and mechanical strength targets to guide material selection.
- Define required materials (buffer polymers, jacket compounds) and confirm U.S. supplier availability.
Data Standards, Traceability, And Validation
Convert targets into factory information: logged process variables, batch traceability, and required customer test reports for acceptance. Use R&D pilot runs to validate settings and cut scale-up time.
Fiber Ribbon Line
| Goal | Factory Implication | Common Action |
|---|---|---|
| Low loss | Tension + alignment control | Inline attenuation checks |
| High strength | Strength-element selection | Integrate aramid or metal |
| Bend-tolerant performance | Fiber selection | Use G.657 variants |
Build Quality Into Optical Fiber: Core, Cladding, Coating Essentials
Strong optical performance begins in the glass, where core purity and cladding design set the limits for signal loss.
The core and cladding form the central layer structure: a solid, ultra-pure silica core transports light while lower-index cladding keeps it confined. This geometry underpins low-loss transmission and stable optical behavior once cabled.
From Preform To Drawn Glass Fiber
Manufacturing starts with preform laydown and consolidation. Removing moisture in a high-temperature furnace reduces defects that raise attenuation.
The draw process pulls glass into a micron-scale strand. Geometry control at this stage directly supports stable attenuation and predictable transmission performance. A single blank can produce about 5 km of fiber, so process stability saves time and cost.
Primary Coating & Color Coding
The primary coating protects against scratches and handling damage; it is not the primary strength element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.
- Preform consolidation: eliminate contaminants and moisture.
- Draw: manage diameter and tension for low attenuation.
- Coating and color: protect and identify each fiber.
| Layer | Function | Buyer Verification |
|---|---|---|
| Core | Transmit light while minimizing attenuation | Specify purity and loss specs |
| Optical cladding | Contain light, manage modal behavior | Verify index profile and geometry |
| Primary coating layer | Scratch protection; color identification | Verify adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A workable line setup moves each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer, UV-cured coatings (≈250 µm) and one-to-twelve-channel color coding for traceability. Consistent UV cure rates and steady web tension reduce mix-ups and rework.
Buffering And Materials
Tight buffering (600–900 µm) protects handling and simplifies connector preparation. Selecting Hytrel, PVC, or LSZH affects flexibility, temperature range, and flame/smoke performance.
SZ Stranding, Organization
SZ stranding uses an alternating lay to balance geometry and provide flexibility. Servo control for up to 24 fibers keeps lay pitch consistent and lowers attenuation risk.
Strength Members, Jacketing
Aramid yarn is the standard tensile element; it provides pull strength without stressing fibers during installation.
Outer jacket extrusion using PVC, PE, or LSZH follows. Speeds often run 60–90 m/min and demand tight OD and concentricity control.
Armoring And Control Points
Where crush or rodent resistance is needed, add steel tape or wire armor with adjustable tension. Operators monitor tension, cure state, concentricity, OD, and cooling to maintain quality.
| Stage | Primary Control | Typical Spec |
|---|---|---|
| Secondary coating stage | UV cure plus tension | ≈250 µm, consistent cure |
| Tight buffer | Choice of material | 600–900 µm (Hytrel/PVC/LSZH) |
| Outer sheathing | OD/concentricity | Typically 60–90 m/min |
Optimize Production Speed And Process Control With Modern Automation
When factories push for 24/7 output, synchronized controls and tension systems become the backbone of reliable manufacturing.
PLC, HMI & Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC + HMI platforms to synchronize modules, manage recipes, and record process information. Closed-loop tension control protects fiber during start, stop, and speed changes.
Fiber Ribbone Line
Match Speed To Curing And Dimensional Control
Line speed is often limited where curing, cooling, or extrusion dimensional control falls behind. UV cure completeness, water-trough stability, and chiller capacity define the real limit.
Layout, Changeover, And Procurement
Factory layout affects uptime: proper pay-off/take-up placement and protected fiber paths reduce damage and shorten changeovers.
- Design quick-change tooling and documented setup steps for faster changeover.
- Specify industrial power (380 V AC ±10%) and a typical ≤55 kW load when ordering equipment.
- Require remote diagnostics, parts availability, and responsive service from the equipment company.
| Priority | Operational Benefit | Typical Goal |
|---|---|---|
| System synchronization | Lower scrap, repeatable runs | Siemens PLC + HMI |
| Closed-loop tension | Protects fiber; keeps loss stable | Closed-loop with high accuracy |
| Layout and changeover | Reduced downtime | Quick-change tooling + staging |
Testing & Quality Control To Reduce Loss And Improve Delivery Reliability
Strong testing and clear QC turn raw fiber into reliable, field-ready cable reels.
Start with optical validation. Inline attenuation testing and return loss checks confirm signal performance before reels leave the line.
Optical Checks, Signal Integrity
Attenuation testing is the key guardrail against performance issues. Higher loss values typically point to handling damage, microbends, or contamination.
Return loss checks focus on reflections that impact sensitive links and tight network margins.
Mechanical And Environmental Validation
- Tensile pull tests validate strength members and safe installation loads.
- Crush and bend tests mimic real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration testing de-risk outdoor and aerial deployments.
| Validation Test | Objective | Typical Outcome |
|---|---|---|
| Attenuation | Measure loss per km | Pass/fail vs. spec |
| Mechanical tests | Validate pull, crush, bend | Installation performance rating |
| Environmental validation | Simulate real field conditions | Durability verification |
Traceability ties raw material lots, in-line data, and final test results to reel IDs. Proper reeling, labeling, and protective packaging protect quality and accelerate customer acceptance and delivery.
Conclusion
A clear manufacturing plan ties product targets to the exact line modules and control limits needed for reliable output. Define the FTTH product, service environment, and measurable specifications before choosing equipment or layout.
Fiber optic fundamentals—core, cladding, and coating—set the optical baseline. Careful handling upstream preserves data integrity and keeps end-product quality within acceptance limits.
Configure buffering, organization/stranding, strength members, and jacket choices to fit installation realities. Use automation and closed-loop controls to sustain speed, cut scrap, and make delivery predictable across U.S. markets.
Operational discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: translate these points into a purchasing checklist (spec targets, utilities, layout, acceptance tests) before requesting quotes or trials.
